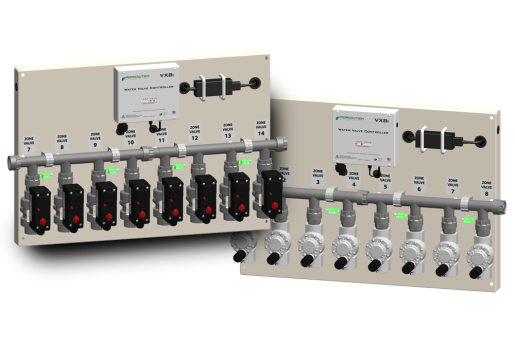

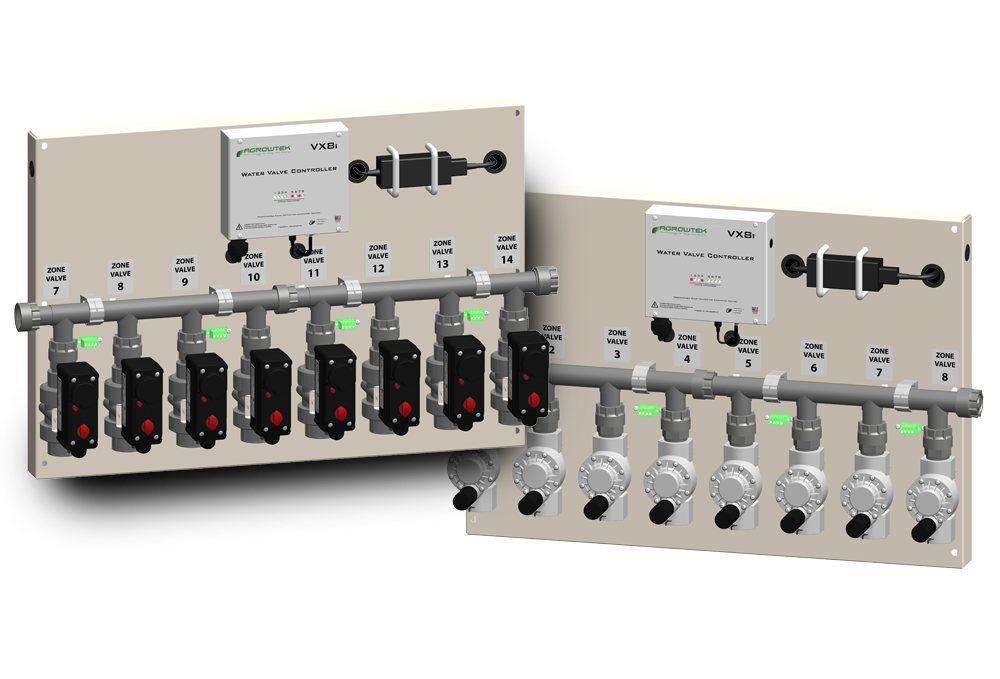

VXP Irrigation Valve Panel

Eight valve irrigation panel for BDX and GCX systems.
No image set
Online Price:$2,099.00
List Price:$2,099.00
Sales Tax:

Irrigation Valve Panel

Eight Electric Water Valves
Durable PVC Construction
150 PSI Max
1 Yr Warranty
Made in USA


Eight-valve irrigation panel for BDX Fertigation Systems. Each BDX system can accept one VXP8 valve panel to expand the system to up to 14 zones. Up to three valves may be operated simultaneously.

Intelligent design with self-cleaning ports for resistance to sediment, and fail-safe mechanism preventing failure in the open position reducing the risk of accidental flooding.. Zero stress diaphragm design to prevent stretching, a common failure mode. Molded shock-cone for anti-water hammer. Manual bleed/open lever. High strength glass-filled nylon body with stainless steel hardware.

Ball Valve Option

Standard diaphragm valves are reliable and economical, but require some pressure differential to close properly. In systems with low restriction, ball valves can provide more positive closure to prevent small amounts of 'leakage' through the diaphram valves as they pressurize from the system pump. Ball valves also prevent any backflow through the valve when they are closed which is possible with diaphragm type valves.


  • 1" NPT female threading
  • For Cold Water
  • Fail-Safe Design
  • 0.25 - 35 gpm
  • 4 - 150 psi
  • 15Vdc / 24Vac
  • Made in USA
