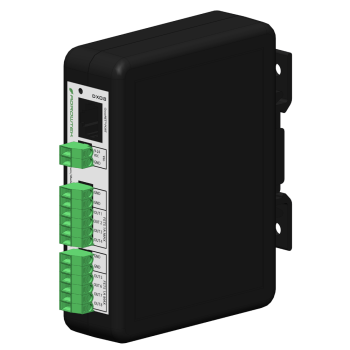

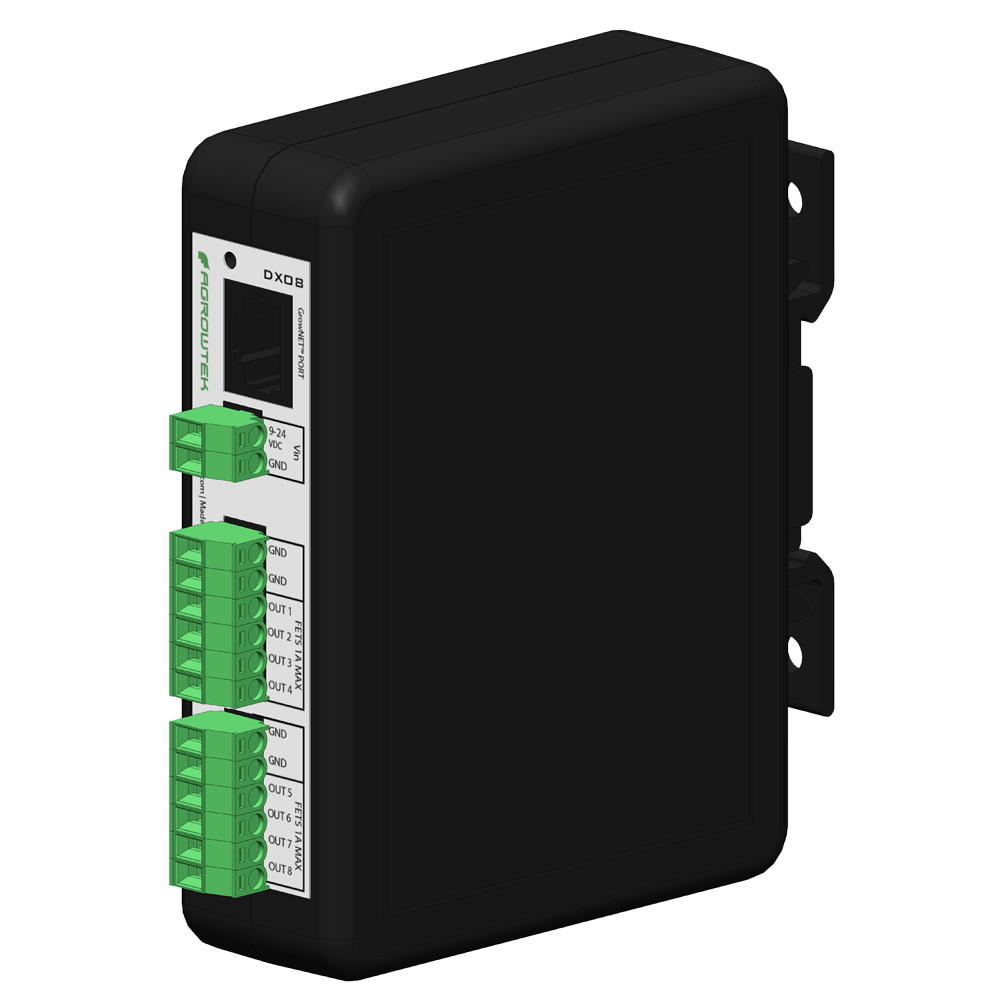

GrowControl™ DXO8 Discrete DC Output Module

8-Output DC Module

DC Outputs

Built-in Surge Suppression

Digital Control, MODBUS Addressable

Made in USA

Description

GrowControl™ DXO8 modules for DIN rail feature eight (8) DC FET outputs rated 1A max (and 1A combined.) Six of the outputs feature PWM capabilities. Designed for driving SSR's, dry-contact relays and contactor coils in load panels. PWM capable channels can operate VFD motor speed controls and dimmable ballasts that support PWM input.

DX series modules can be operated on 12-24Vdc.

GrowNET™ port accepts MODBUS RTU communication for PLC control. Internal digital controller operates relays with MODBUS commands and logs the total number or relay contact closures for each relay in memory. Easily recall manufacturing info such as unit serial number, date of manufacture, contact count, status, etc.

Compatible

	GCX Cultivation Controllers
	MODBUS RS-422/485

Documents

Data Sheet DXO8

Installation Manual

MODBUS Manual

Applications

Greenhouses & Growing Facilities

Building Automation

Industrial Automation

OEM & Custom Applications
