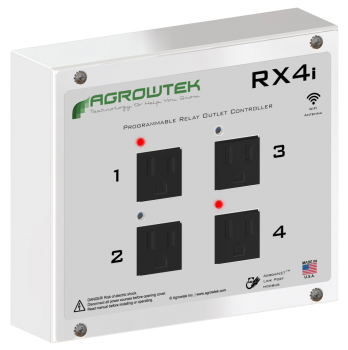

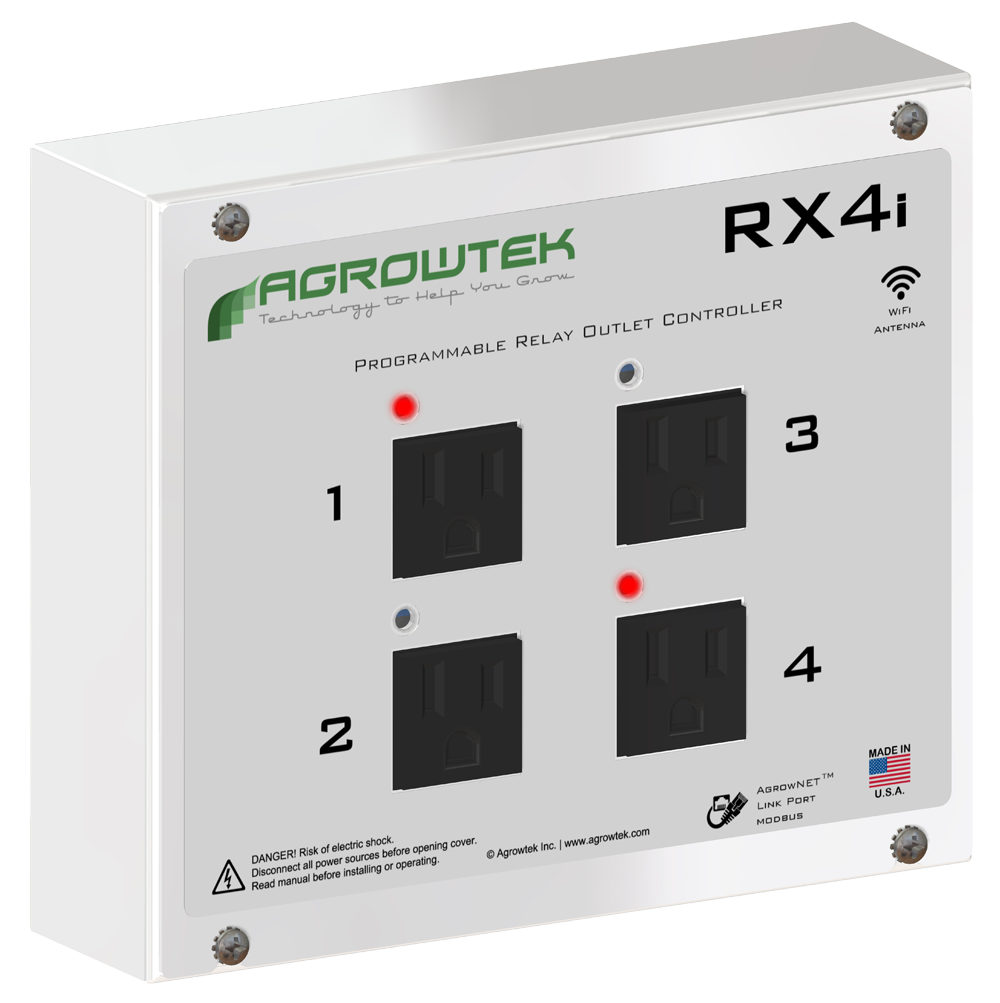

GrowControl™ RX4i Intelligent 4-Outlet Relay

120V Outlets | Independent Programmable Control

Four 120V Outlets

Tough, Reliable Relays

LED Status Indicators

Digital Control, Addressable

GrowNET™ port, MODBUS

Made in USA

Description

GrowControl^TM RX4i relay independently operates four receptacles for control of equipment such as: irrigation pumps, CO2 equipment, fans, lighting trigger cords, etc. Connects instantly to Agrowtek's GCX Cultivation Controls or to a SXE sensor via a GrowNET™ port for advanced automated control functions.

LED indicators on the front panel provide status of each outlet. Rugged metal enclosure for wall mounting. Heavy duty relays and receptacles. Conduit knock-outs and screw terminals for easy electrical installation.

Flexible and reliable outlet controller suitable for many applications. Built on a decade of proven technology and components with new, enhanced capabilities to meet the growing demand for highly reliable environmental control applications.

GrowNET™ port accepts MODBUS RTU communication for PLC control. Internal digital controller operates relays with MODBUS commands and logs the total number or relay contact closures for each relay in memory. Easily recall manufacturing info such as unit serial number, date of manufacture, contact count, status, etc.

Rated 6A per outlet, 10A max combined.

RX4i relays are UL Listed for U.S. and Canada.

Power Cord Kit

The RX4i has knock-outs on the bottom for connecting the RX4i to conduit, or choose the optional power cord kit to plug the RX4i directly into a 120V wall outlet. The cord kit includes a 10A rated 6ft power cord and cord grip to install the cord into the conduit knock out.

Compatible

	GCX Cultivation Controllers
	MODBUS RS-422/485

Documents

Data Sheet

Installation Manual

MODBUS Manual

Applications

Greenhouses & Growing Facilities

Home & Hobby Automation

Analytical, Research & Academic

Building Automation

Industrial Automation

OEM & Custom Applications
