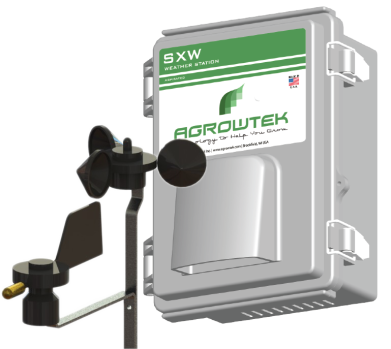

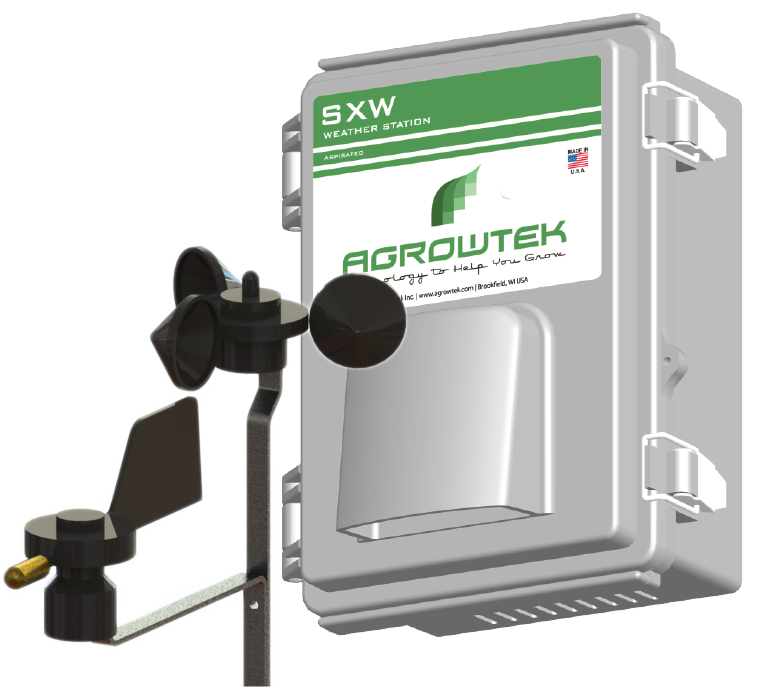

SXW Digital Outdoor Weather Sensor, Logger & Transmitter

Outdoor weather sensor and logger for temperature, humidity light, rain, wind speed and wind direction.
MF3-26_3_1000
Online Price:$449.00
List Price:$449.00
Sales Tax:
Model
Wind Sensors
Rain Sensor
Mounting Kit

Sensing | Logging | Transmitting

icon
Air Temperature
-20 - 60°C
icon
Light (Irradiance)
0-1000 Watts/m2
Wind Speed
0-125mph
Wind Direction

Description

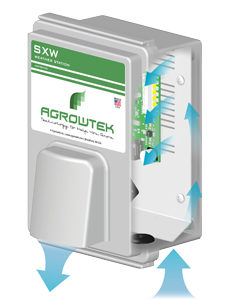

GrowControlTM SXW Weather Monitor & Logger is a precision digital outdoor sensor station featuring temperature, humidity, ambient light, and optional optical rain sensor, wind speed anemometer and wind direction vane. Housed in a rugged powder coated aluminum enclosure and designed for pole mounting. Internal memory logs 21,600 data points for months or years of storage.

Wind Speed Anemometer
Wind speed anemometer with 3 cup rotor masures wind speeds from 1 to 125 MPH. Extremely rugged for harsh conditions and sensitive to the slightest breeze. Simple two-wire connection to transmitter.

Wind Direction Vane
Wind vane uses German Hall effect sensor for precision and durability. Many potentiometer type wind vanes have a dead spot of several degrees, friction from the sensor and a defined life span. Agrowtek's wind vanes have zero dead band, are near-zero friction and have a theoretical infinate life.

Optical Rain Sensor
Sensitive rain sensor can detect a single drop on the sensor dome and works in all weather conditions. When ordered with the weather station the rain sensor is pre-installed.

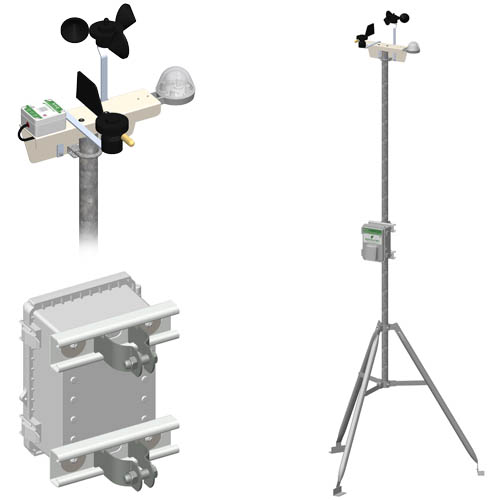

Pole Mounting Bracket Kit
Optional pole mount bracket includes a stainless steel bracket for mounting the SXW weather station, two 1" pole clamps and a PVC stand-off pipe for the weather station.

Options

icon
LX1 USB AgrowLINK
Connects the GrowNET port of any Agrowtek sensor to a PC for datalog download to .csv, graphing, calibration, configuration, updates, and more using free PC software.
icon
LX2 RS-422/485 ModLINK
Connects the GrowNET™ port of any Agrowtek sensor to RS-422/485 for MODBUS RTU.

Compatible

icon GCX Cultivation Controllers
icon GC-Pro/XL Cutivation Controllers
MODBUS RS-422/485

Documents


Applications

icon
Greenhouses & Growing Facilities
icon
Agricultural Facilities
icon
Analytical, Research & Academic
icon
Building Automation
icon
Hobby Weather Monitoring
icon
OEM & custom applications
