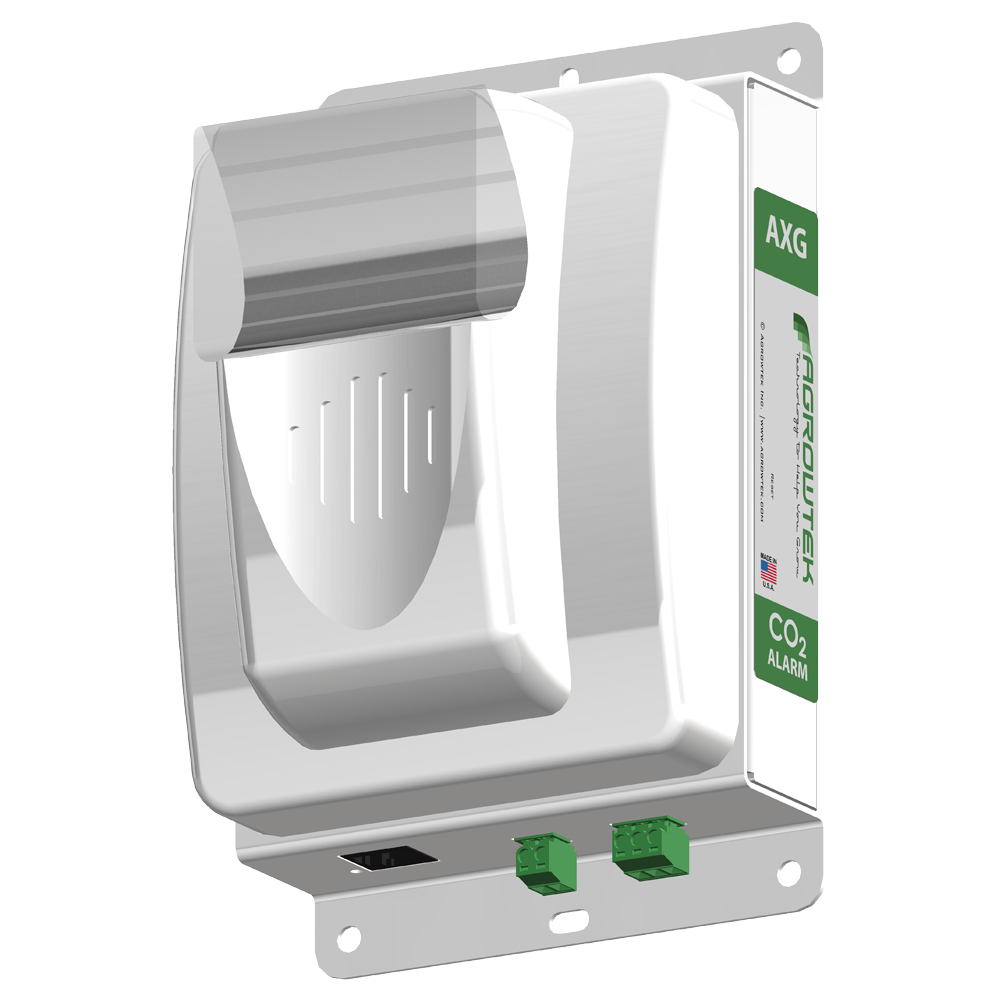

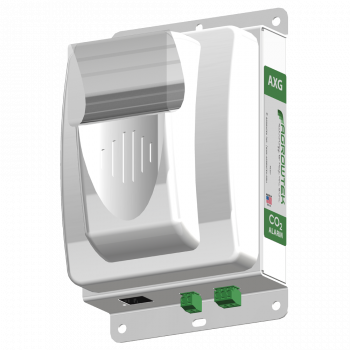

AXG CO2 Gas Horn-Strobe Alarm

Horn-Strobe | Switch Input

Horn-Strobe Alarm

Purge Switch Input

Dry Contact Output

Description

GrowControl™ AXG modules are designed for use in grow facilities to indicate alarm conditions with an audible horn and visual strobe. Optional purge switch connects via two-wire cable to the input terninals on the bottom of the unit. When the purge button is activated the GrowControl™ GCX control system exhaust will purge until the carbon dioxide concentration has reached a safe level and the alarm silences. Additional NO/NC dry-contact terminals for external device control or additional horns/strobes.

Use with SXG CO2 gas sensors as part of a CO2 alarm system.

Connects to Agrowtek's GrowControl™ GCX Cultivation Controllers as part of a facility monitoring and control solution for alarm and exhaust control. AXG alarm modules can be located both inside and outside the grow space.

LX2 ModLINK connects GrowNET™ devices to RS-422/485 for MODBUS RTU protocol communication.

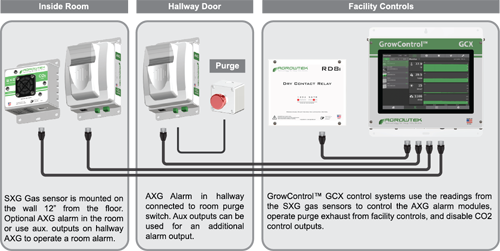

CO2 Alarm System

Compatible

	GCX Cultivation Controllers
	SXG CO2 Gas Sensor
	MODBUS RS-422/485

Documents

Data Sheet

Installation Manual

MODBUS Manual

Applications

Greenhouses & Growing Facilities

Agricultural Facilities

Analytical, Research & Academic

Building Automation

Industrial Process Monitoring

OEM & custom applications
