SXL Optical Liquid Level, Flow & Leak Sensor

Industrial 5-24Vdc/1A optical liquid level sensor available in wet-on, dry-on and digital PWM models.

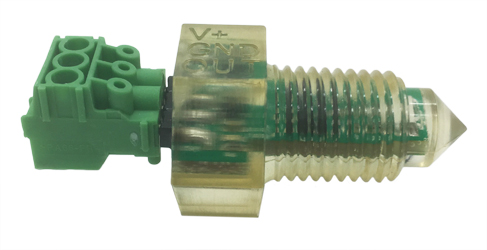

SXL_photo2
$66.00
Tax amount
Model
Mounting Kit

Level Sensing | Flow Sensing | Leak Detection

icon
Intelligent Microprocessor Control
icon
LED Status Indicator
icon
Industrial 5-24Vdc/1A Rugged Design
icon
Made in USA

Description

Electronic optical liquid sensors are durable, have no moving parts and are easy to maintain. SXL sensors can detect fluid levels in tanks, flow in pipes, or leaks in drip pans when liquid touches the sensor tip. Wide voltage range and high current capacity makes the SXL sensor practical for TTL logic, industrial PLC or direct relay control applications. 1/4" NPT threading and removable wiring terminal block with pin-out cast into the hex head makes installation or replacement fast and simple. When the output is energized a red LED illuminates the sensor body giving a visual status indication. Other intelligent functions include "stable state" switching to detect splashing, output debounce and error indication from infrared flooding.

Output Options

Available in 'WET-ON' and 'DRY-ON' configurations, or PWM output for advanced or embedded applications requiring error indication and failure monitoring.

Latching option maintains sensor output in the ON state once activated until the power is cycled to the sensor.

alt

SXL-1 and SXL-2 models connect directly to discrete inputs on Agrowtek's GC-Pro/XL control systems.

Documents

Videos

How Optical Sensors Work

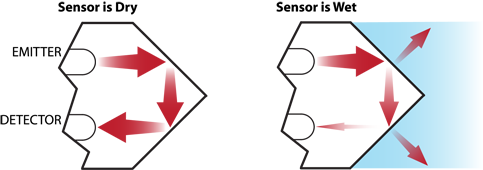

When the sensor tip is dry, infrared light from an emitter is internally reflected back to to a receiver. When the tip is wet, the majority of the light from the emitter escapes the tip into the fluid reducing the reflection to the receiver. A microcontroller drives the emitter, monitors the receiver and operates the output according to the model selected.

alt

Standard Installation

Sensors can be mounted in:

  • Tank walls for level detection and control,
  • Pipe tees for flow detection,
  • Tray bottoms & brackets for leak detection,
  • End of a pipe with the cap kit shown below.

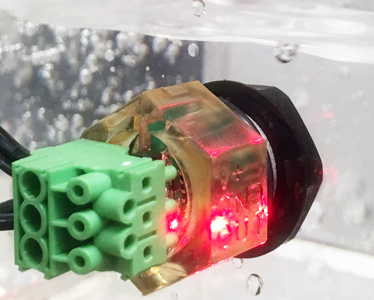

Includes NPT nut and o-ring seal for through-wall and bracket mounting (bracket not included.)

alt

LSM Mounting System

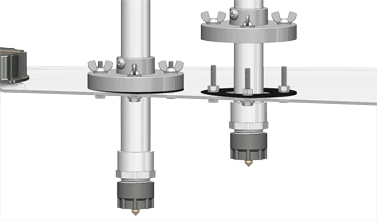

Convenient mounting kits install liquid level sensors on the end of any 1" PVC pipe for top-down installation in the top of a tank. Eliminate holes in the side of a tank and have adjustable depth plus the convenience of removing the sensor for easy cleaning and maintenance. Mounting flange kit with all stainless-steel hardware securely mounts the sensor pipe to the tank. Wing nuts allow quick access to the sensor and a set-screw in the flange allows quick and easy depth adjustments.
