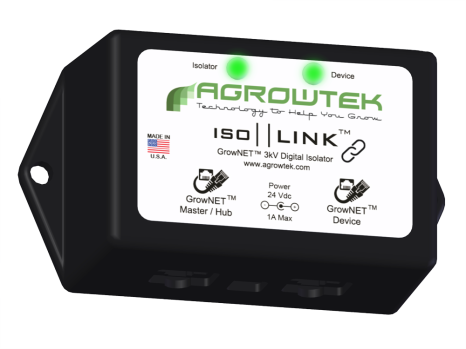

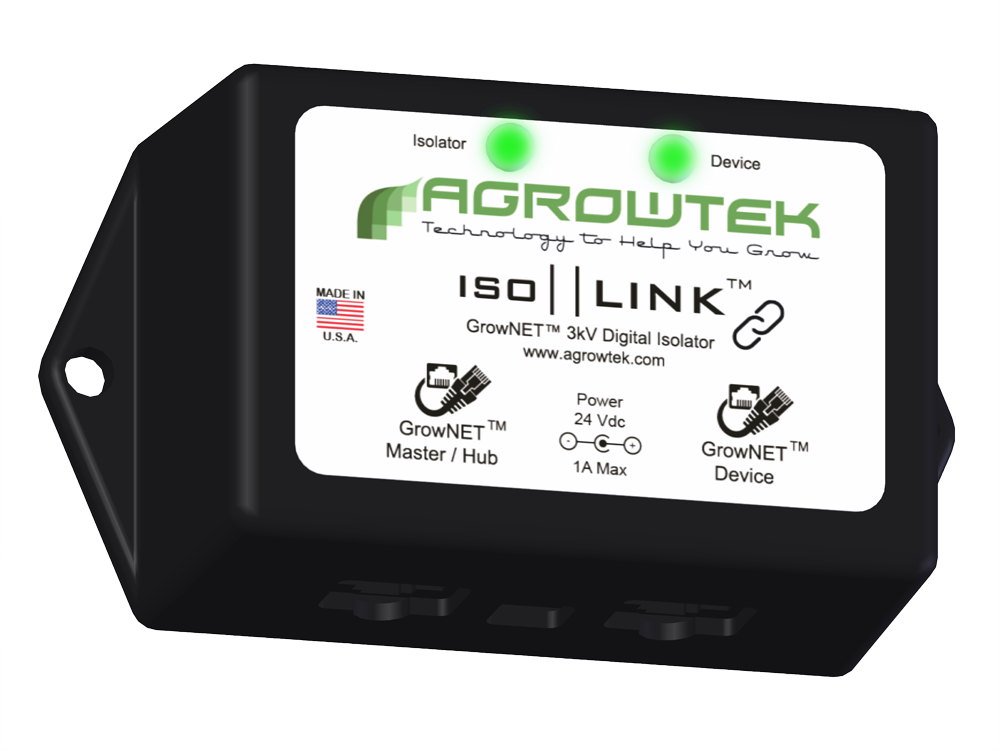

LX5 isoLINK™ GrowNET™ Isolator & Extender

GrowNET™ Digital Network Isolator & Extender

Digital Communication & Power Isolation

3kV Max Protection

Made in USA

Description

isoLINK™ modules connect inline with GrowNET™ communication cables to "isolate" devices with high electrical noise from the control system. They can also be used to extend connection distances and inject power to devices from the module's power supply.

• Outdoor cable runs, weather stations
• Extending cable length
• Running cable through harsh environments
• Interfacing with noisy electrical equipment

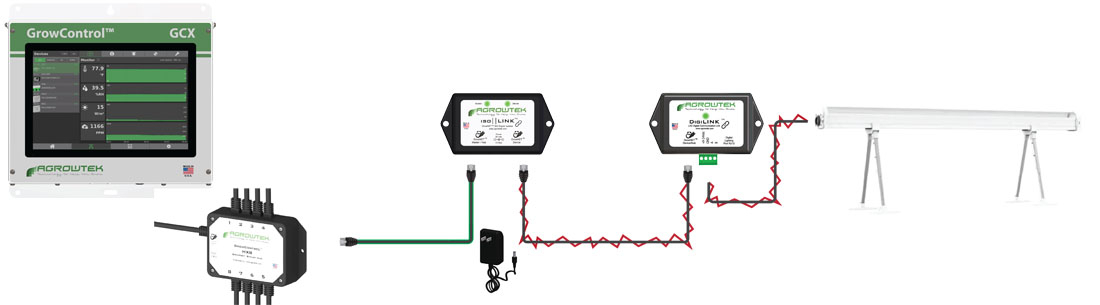

isoLINK™ modules are commonly used to isolate GrowNET™ lighting control modules when the fixtures cause interference with network communications. The isoLINK™ is installed between the control system's GrowNET™ device network, and another GrowNET™ device or network providing up to 3kV of isolation. A 24Vdc power supply is included for the module.

Supports GrowNET™ and MODBUS RTU protocols up to 115kbps.

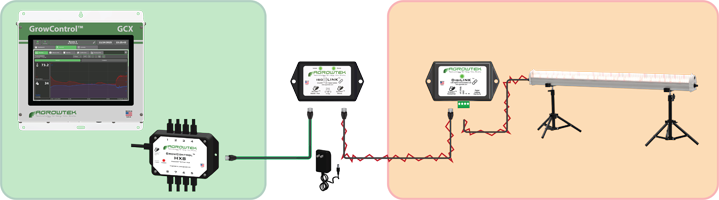

Noise Isolation

Many low-cost fixtures can feed back electrical noise into the system causing problems with system operation. The isoLINK™ module prevents this noise from reaching the control system.

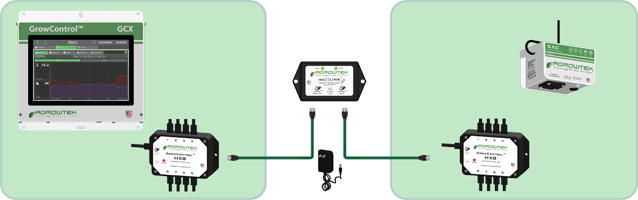

Range Extension

LX5 isoLINK™ modules allow range extension for distances greater than 100ft, or when connecting networks between buildings or outdoor locations.
