GrowControl™ G Panel Enclosures

Pre-fabricated weather-proof control cabinets for Agrowtek systems & components.
Online Price:$509.00
List Price:$509.00
Sales Tax:

Panel Service

Factory Assembled Control Panels
Various Standard Configurations
Assembled in USA

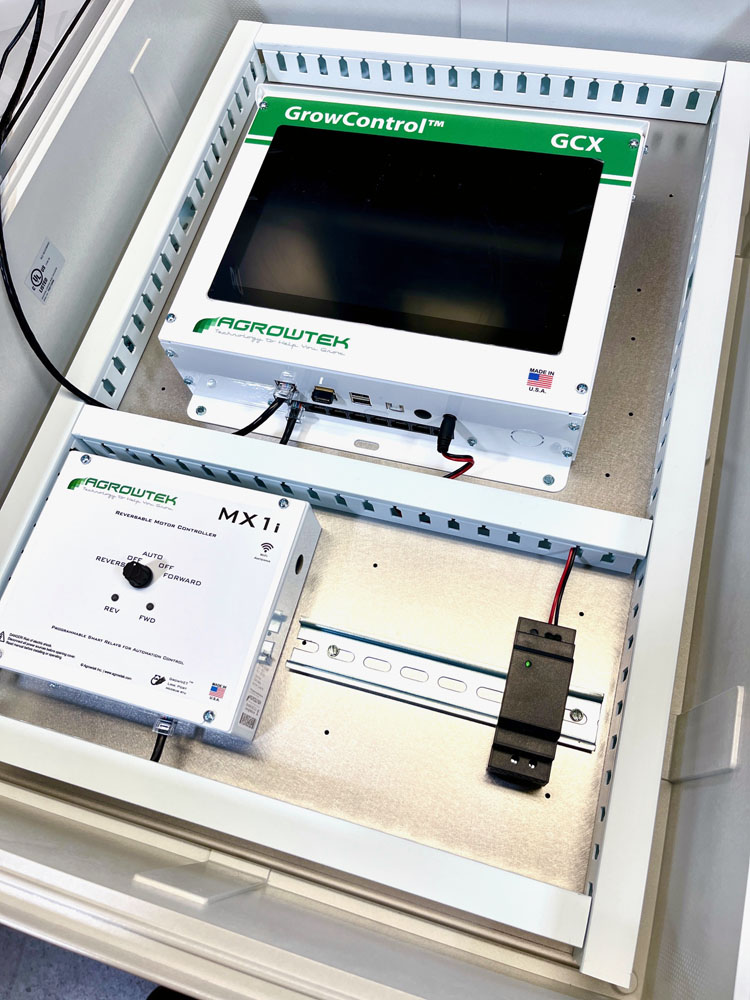

GrowControl™ "G Panel" Service by Agrowtek offers several standard enclosure options for Agrowtek controllers and components. Components are mounted on a custom stainless steel back panel with DIN rail and wire trough for a clean, professional installation in a weather-proof enclosure from the factory. Reduce time spent on the job site during installation with a pre-tested and pre-configured panel from Agrowtek.

One control panel is recommended per growing room or greenhouse zone. The control panel houses all of the components for the zone with the exception of the environment sensors and alarm modules which can be routed to the panel enclosure (if enough ports are available.) Enclosure configurations also available for housing the main GCX or GCX+ Cultivation Controller unit.

G Panel Mini

New G Panel Mini is designed for applications where a smaller number of devices need to be protected from moisture. Several configurations are available with combinations of single relay or irrigation valve controller, GrowNET™ hubs, HXT moisture sensor hubs and more.

Panel Power

DIN rail mounted AC-to-DC power supplies energizes all of the components in the panel with 24V DC. There are no bulky 120V outlets or transformer plugs to take up space in the panel.

Service Includes

  • Polycarbonate Weather-Proof Enclosure
  • Stainless Steel Back Panel
  • Wire Troughs & DIN Rails
  • Mounting of Agrowtek Components
  • Connection to HX8 Hub w/CAT5 Cables
  • Connection to DC Power w/Barrel Plug Cables

Additional Services

Additional service can include pre-addressing and configuration on the Agrowtek control system for fast and seamless start-up. Contact This email address is being protected from spambots. You need JavaScript enabled to view it. for more information.

Enclosure Specifications

Certifications: UL & cUL Listed, NEMA 4X rated, Meets IP65, IP66 & IP67 specifications.
G Panel Standard: 28" x 20" x 8"
G Panel Mini: 16" x 12" x 6"
