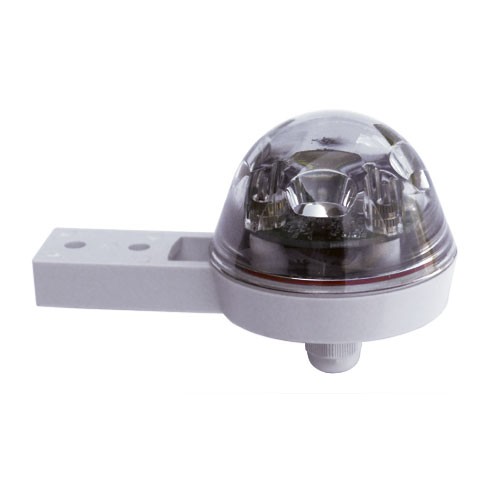

SXR Optical Rain Sensor

Description

GrowControl™ SXR Rain Sensor is a high quality optical type rain sensor with no moving parts. The rain gauge senses water hitting its outside surface using beams of infrared light. It uses the same sensing principle used in millions of automotive rain sensing windshield wiper controls.

Connect to GrowControl™ GCX Cultivatoin Controllers with DXI8 digital inputs to close vents and windows down to a weather set-point at the first sign of rain.

Equipped with arm for mounting to structure or weather station. Smart logic prevents false triggers from dust and other slow build-up of accumulation. Adjustable sensitivity allows for four different settings which activate the sensor from the slightest amount of rain to heavy rainfall.

Available as an installed option on SXW weather stations.

Operates on 9-24Vdc.

Documents

Data Sheet

Installation Manual

Specifications

• IR Rain Detection, No Moving Parts
• Fully Sealed
• Heated, use to 32°F (0°C)
• Connects to Digital Input on controller
