SXHF Hydroponics Nutrient / pH Monitor & Controller with Flow

Sensing | Logging | Transmitting | Monitoring | Dosing

Water Temperature
-20 - 60°C

pH
0-14 pH

Conductivity
0-5000 uS (0-2500ppm)

Flow Rate
0-30gpm (0-150 lpm)

Documents

Data Sheet

Installation Manual

MODBUS Manual

Videos

SXH Setup & Operation Instructions

Description

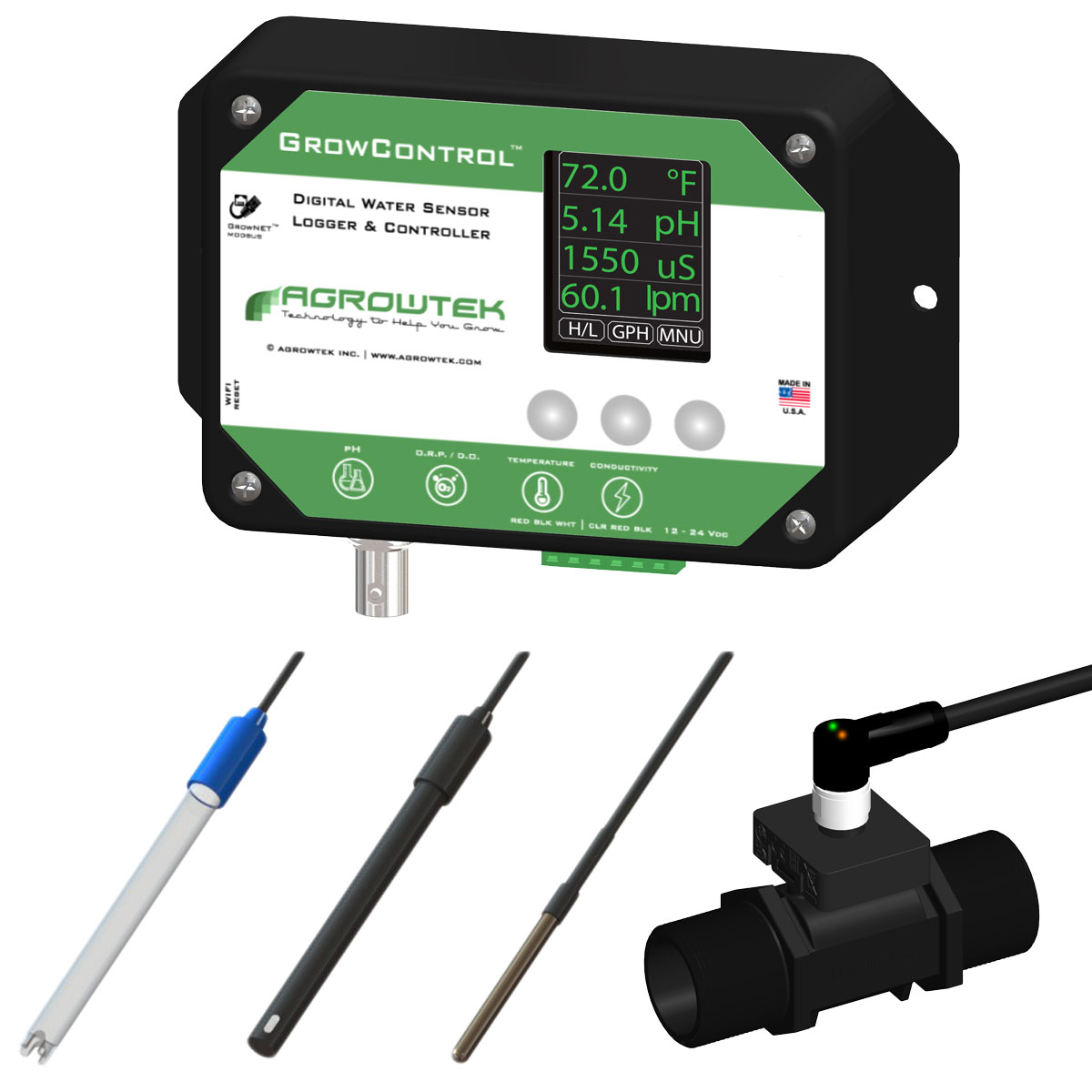

GrowControl^TM SXHF precision digital hydroponics sensor transmitter, data logger and mini-controller for temperature, pH, conductivity, plus water flow rate sensor. Optional color display and 3-button interface make this unit capable of operating stand-alone for sensor monitoring, alerts, dosing pump control and more. Precision digital electronics with isolated probe inputs accurately read and record sensor data. Internal memory logs 21,600 data points per sensor for months or years of storage. Accurate real-time-clock with battery backup keeps log time accurate during power outages.

Optional color display screen features large, bright green sensor readings for easy visibility, plus a range of functions that can be performed directly from the menus including:

• High/low history
• Graphical history
• Alarm set points
• Sensor calibration
• Data logging options

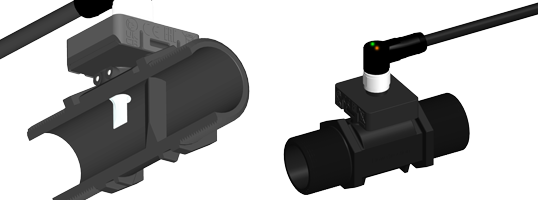

Flow Sensor

New Flow Sensor option allows monitoring and tracking water usage with data logging. Nutrient/pH dosing can also be operated only when the flow meter senses movement of water on MDX/MPX dosers and on GCX cultivation control systems.

Options

LCD Display

LX1 USB AgrowLINK

LX2 RS-422/485 ModLINK™

Compatible

	GCX Cultivation Controllers
	MDX Dosing Systems / Panels
	MODBUS RS-422/485

Applications

Greenhouses & Growing Facilities

Aquarium, Aquaponics

Analytical, Research & Academic

Pool & Spa

Industrial Process Monitoring

OEM & custom applications
