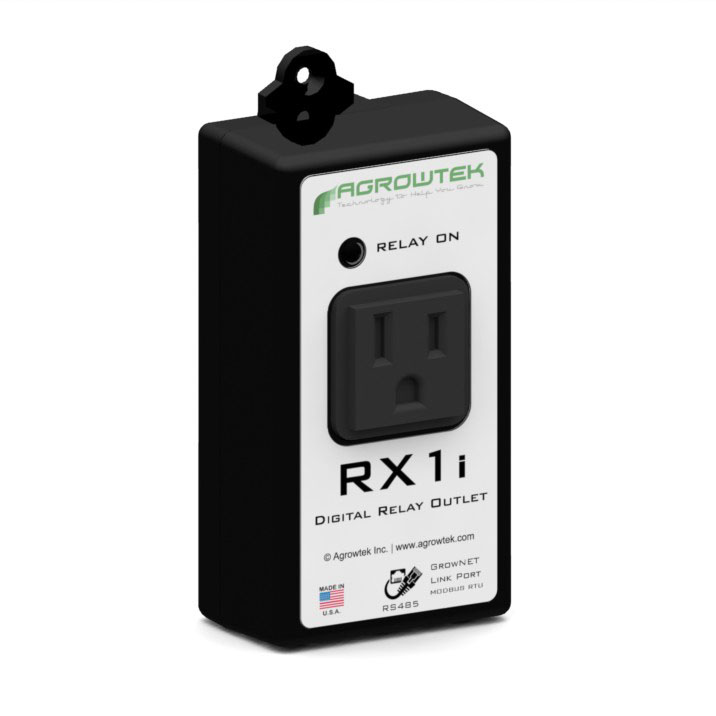

GrowControl™ RX1i Intelligent Single Outlet Relay

Single Outlet Relay

Single 120V Outlet

Tough, Reliable Relay

LED Status Indicators

Digital Control, Addressable

GrowNET™ port, MODBUS

Made in USA

Description

GrowControl™ RX1i relay operates a single 120V outlet for control of individual devices such as CO2 generators and other remotely located equipment. Connects instantly to Agrowtek's GCX Cultivation Controls or to a SXE sensor via a GrowNET™ port for advanced automated control functions.

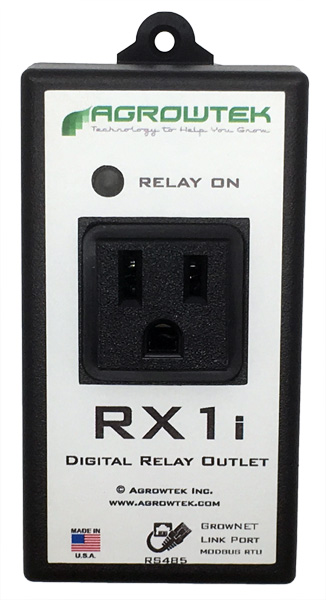

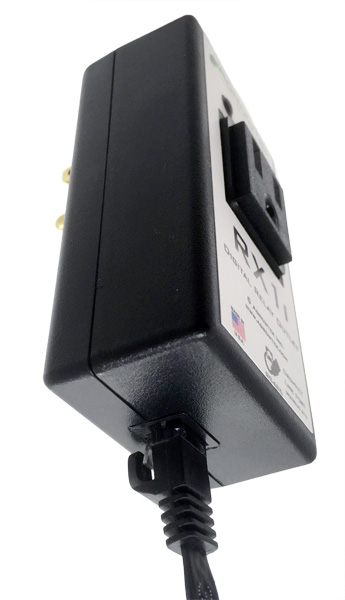

LED indicator on the front cover provides AC power to the outlet. Rugged polymer enclosure with screw tab for secure mounting. Durable heavy-duty relay and outlet. Conduit knock-outs and screw terminals for easy electrical installation.

Flexible and reliable outlet controller suitable for many applications. Built on a decade of proven technology and components with new, enhanced capabilities to meet the growing demand for highly reliable environmental control applications.

GrowNET™ port accepts MODBUS RTU communication for PLC control. Internal digital controller operates relays with MODBUS commands and logs the total number or relay contact closures for each relay in memory. Easily recall manufacturing info such as unit serial number, date of manufacture, contact count, status, etc.

Rated 6 Amps @ 120 VAC.

RX1i relays are UL Listed for U.S. and Canada.

Compatible

	GCX Cultivation Controllers
	MODBUS RS-422/485

Documents

Data Sheet

Installation Manual

MODBUS Manual

Applications

Greenhouses & Growing Facilities

Home & Hobby Automation

Analytical, Research & Academic

Building Automation

Industrial Automation

OEM & Custom Applications
