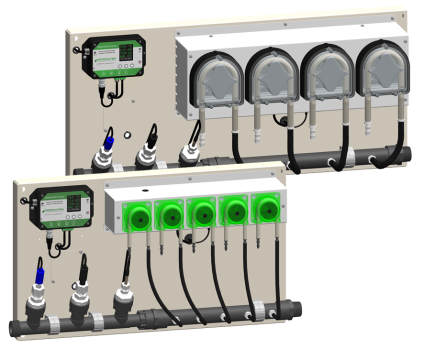

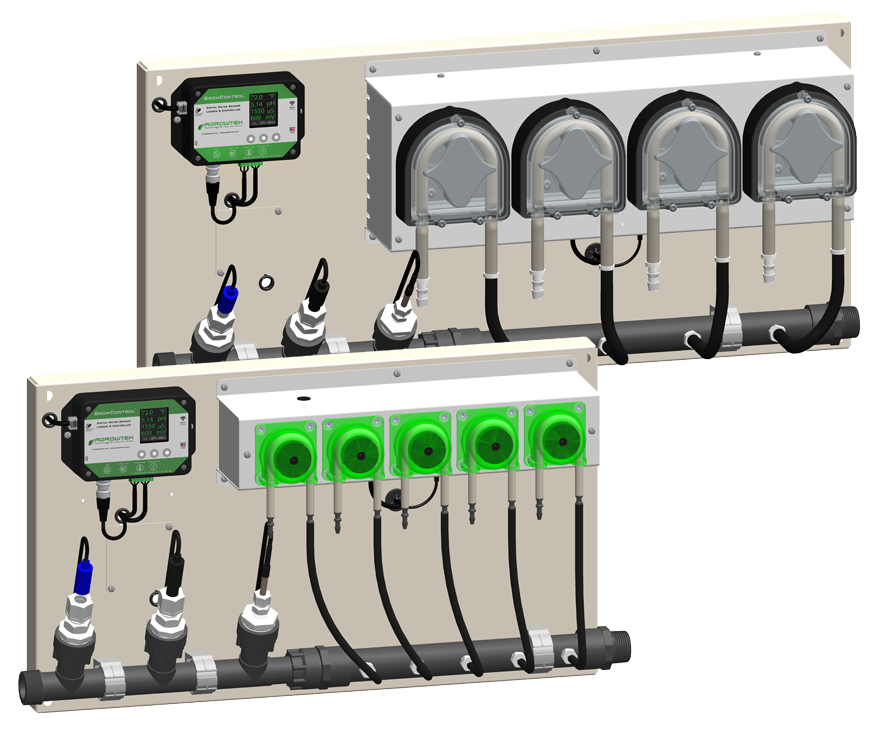

MDXP Modular Dosing Panels automate nutrient dosing, pH and ORP control in batch tanks or re-circulating hydroponic systems. These pre-assembled panels come ready to dose! Just connect the water manifold to your system and plug in power! Controller, dosing pumps and water manifold are all conveniently mounted on a stainless steel back panel simplifying installation and providing a clean appearance. Designed for easy wall-mounting. Available in 1, 2, 4, 5 or 6 pump configurations. Each pump can be configured for pH up, pH down, ORP or EC nutrient dosing as required.
MDX dosers are designed to manage single, indvidual reserviors where it is not economical to install a BDX BatchMATIC™ centralized dosing system, or where further monitoring and control of reservoirs is required.
The MDX system's sensors continuously monitor the water pH, EC and ORP (if equipped.) When readings fall outside of the set points, the pumps will begin injecting fixed amounts according to the programmed recipe. The system repeats the doses with optional time delays until the set points are achieved.
The controller's built-in color display provides an easy to use interface for monitoring the sensor readings and configuring the dosing settings. Display includes features such as:
Built on a decade of proven technology and components with new, enhanced capabilities to meet the growing demand for highly reliable autonomous dosing applications.
Peristaltic pumps offer reliable and accurate chemical metering. AgrowDose™ pumps are built with strong motors, robust digital electronic controls and FDA compliant tubing. Pumps inject chemicals quickly into water lines up to 25psi.
Standard ADi pumps operate at up to 480 ml/min and feature quick-release heads to replace tubing in seconds without tools.
ADi-XL high-flow pumps operate at up to 1,600 ml/min and feature easy maintenance heads to replace tubing quickly. XL pumps are offered in dual and quad configurations only.
Sensors allow the MDX's controller to operate the pumps according to the user specified recipe in order to monitor and maintain the water pH, EC, etc. Standard 12mm sensor probes are fitted to manifolds with chemical resistant compression fittings.
pH probe features standard BNC connection. Conductivity probe and Temperature probes connect via screw-in terminal block. All probes are made in the U.S.A.
